2BEA-353-0 liquid ring vacuum pumps

2BEA 2BEC series water ring vacuum pump (hereinafter referred to as pump) is used to suck air or other non-corrosive, water-insoluble, and solid particle-free gases to form a certain vacuum in the closed container. A trace amount of liquid is allowed to be mixed in the sucked gas. The recommended working range of the pump is 400hpa-900hpa.

This type of vacuum pump is mainly used in chemical, petrochemical, light industry, pharmaceutical, papermaking, metallurgy, building materials, electrical appliances, food, coal washing, mineral processing, fertilizer and other industries.

When equipped with an explosion-proof motor, it can suck flammable and explosive gases. When the pump body material is corrosion-resistant material, it can suck gases with certain corrosiveness.

Features

*High reliability

Due to the strong heat-insertion interference fit between the shaft and the impeller hole and the large safety factor of the bearing, this type of pump has a very high reliability. The impeller is welded, and the hub and blades are all processed, which fundamentally solves the dynamic balance problem, and the operation is balanced and low noise.

*Easy maintenance

Due to the inspection holes set on the two end covers of the pump (just remove the pressure plate), the internal structure or gap can be easily checked, and the exhaust port valve plate can be quickly and conveniently replaced. In addition, the replacement of the packing can also be carried out without removing the pump cover, which is very convenient.

*High efficiency and energy saving

This series of water ring pumps adopts a system optimization design. The main components such as the distribution plate and the impeller have a reasonable design structure and high efficiency. In addition, this type of water ring pump adopts a flexible exhaust valve design to avoid over-compression during gas compression, and reduce energy consumption by automatically adjusting the exhaust area. So as to achieve the best operating efficiency.

*Adapt to impact loads

The blades are formed by one-time stamping of steel plates, and the profile is good. The welded impeller is heat treated as a whole, and the blades have good toughness, and their impact resistance and bending resistance are fundamentally guaranteed to adapt to impact loads.

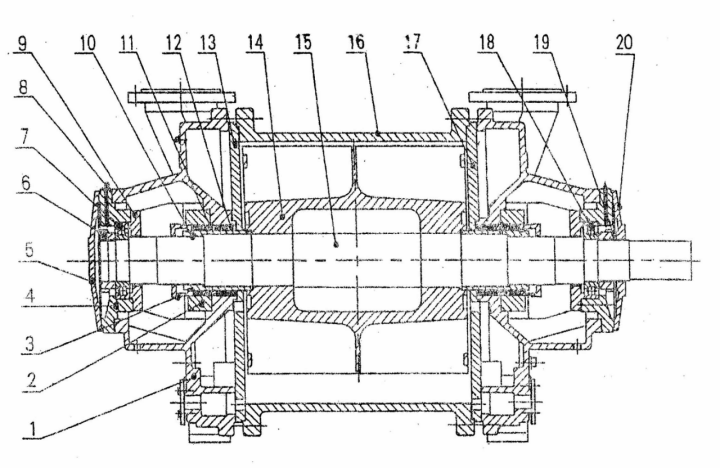

Structural diagram

1. Pump cover 2. Machine seal 3. Machine seal cover 4. Bearing shell 5. Rear bearing cover 6. Rear round nut 7. Cylindrical roller bearing with flange 8. Oil cup

9. Bearing cover 10. Shaft sleeve 11. Packing spacer 12. Packing 13. Rear distribution plate 14. Impeller 15. Shaft 16. Pump body 17. Front distribution plate

18. Cylindrical roller bearing 19. Front round nut 20. Front bearing cover

Performance parameters

Model	Ultimate   pressure hPa	Drive type	Maximum  gas volume m3/min	Speed r/min	Maximum shaft    power kw	Motor  power kw	Inlet/outlet diam. mm
2BEA-103-0	33	Belt	5	1300	7	7.5	65
			6	1450	8	11
			6.5	1625	10	11
			7	1750	11	15
2BEA-153-0	33	Belt	7.5	1300	11	15	100
			9	1450	14	15
			11	1625	16	18.5
			12	1750	19	22
2BEA-202-0	33	Belt	11	880	16	18.5	125
			12	980	19	22
			14	1100	22	30
			15	1170	25	30
2BEA-203-0	33	Belt	16	880	25	30	125
			19	980	30	37
			21	1100	36	45
			22	1170	40	45
2BEA-252-0	33	Belt	25	666	32	37	150
			27	740	38	45
			31	820	46	55
			33	880	53	75
2BEA-253-0	33	Belt	30	590	37	45	150
			35	660	45	55
			40	740	55	75
			44	820	65	90
2BEA-303-0	33	Belt	43	472	46	55	200
			47	530	58	75
			52	590	67	75
			60	660	80	90
			64	740	90	110
2BEA-353-0	33	Belt	68	490	91	110	250
			75	530	105	132
			85	590	126	160
			95	660	154	185
2BEA-355-0	160	Belt	79	472	92	110	250
			84	500	105	132
			88	530	113	132
			96	590	136	160
